Financial City Hotel Chengdu Mgallery Collection

From the entrance monument to the last guestroom door, every sign in this project was custom fabricated to match the exact tone, texture, and finish of the hotel's interior design — not off-the-shelf, but built to spec. Stainless steel cut and formed to sub-millimeter tolerances, hand-antiqued bronze and champagne electroplating, backlit acrylic calibrated to 2700K–3000K warmth, stone bases matched to the property's material board — this is the level of craftsmanship we deliver on every order, whether it's a single feature sign or a full hotel-wide wayfinding system.

Below is a snapshot of the specifications behind five signature pieces from this project, showing the range of materials, sizes, and installation methods our workshop handles end to end — from design drawing to on-site mounting.

Sign Type	Size	Material	Installation

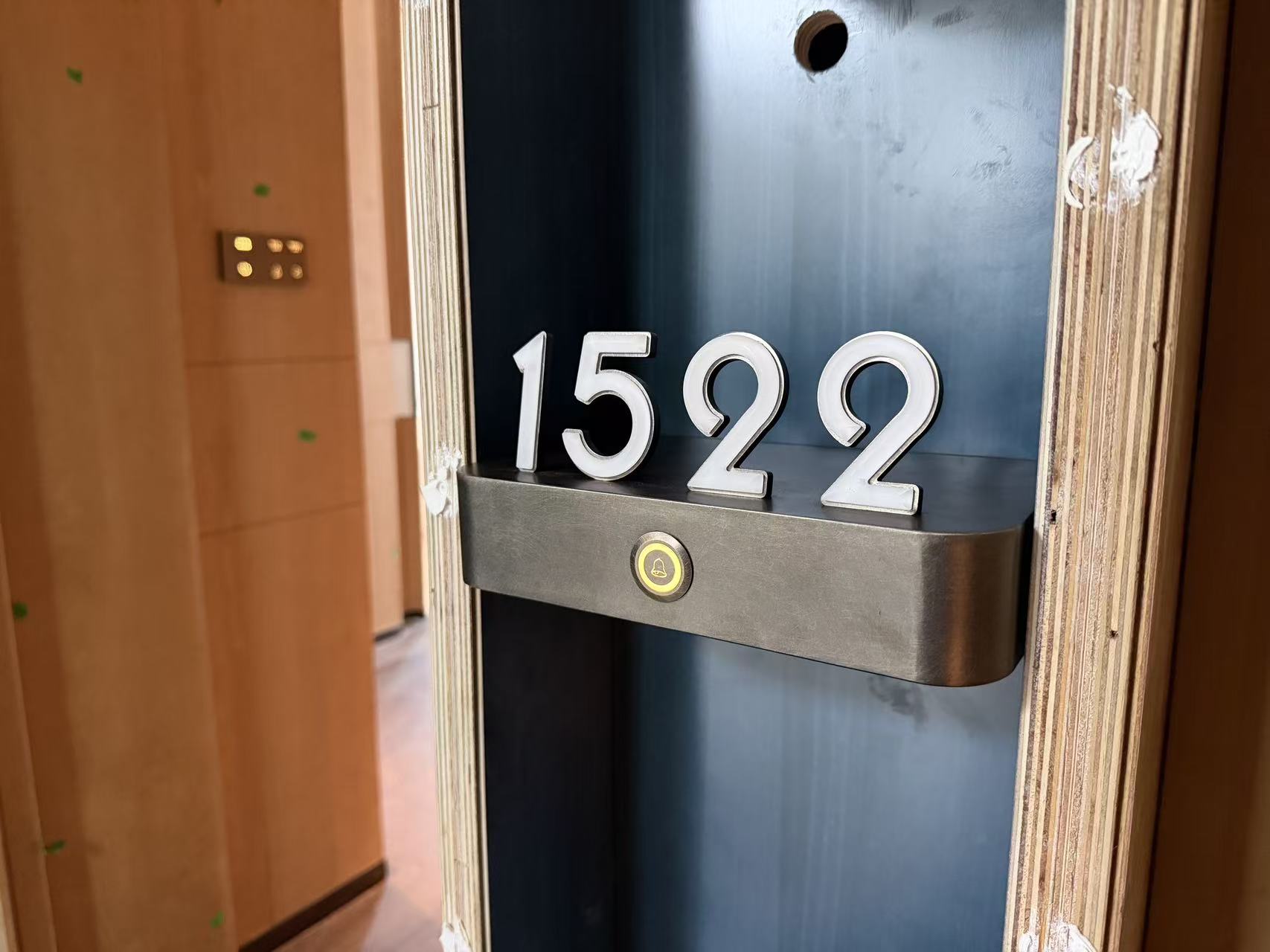

Room Number Sign – B	280×155mm base box; number plate 180×55mm	1mm stainless steel box (antique bronze); 5mm ivory acrylic relief digits; frosted RGB acrylic nameplate	Wall/door-side mounted box, 15° angled side

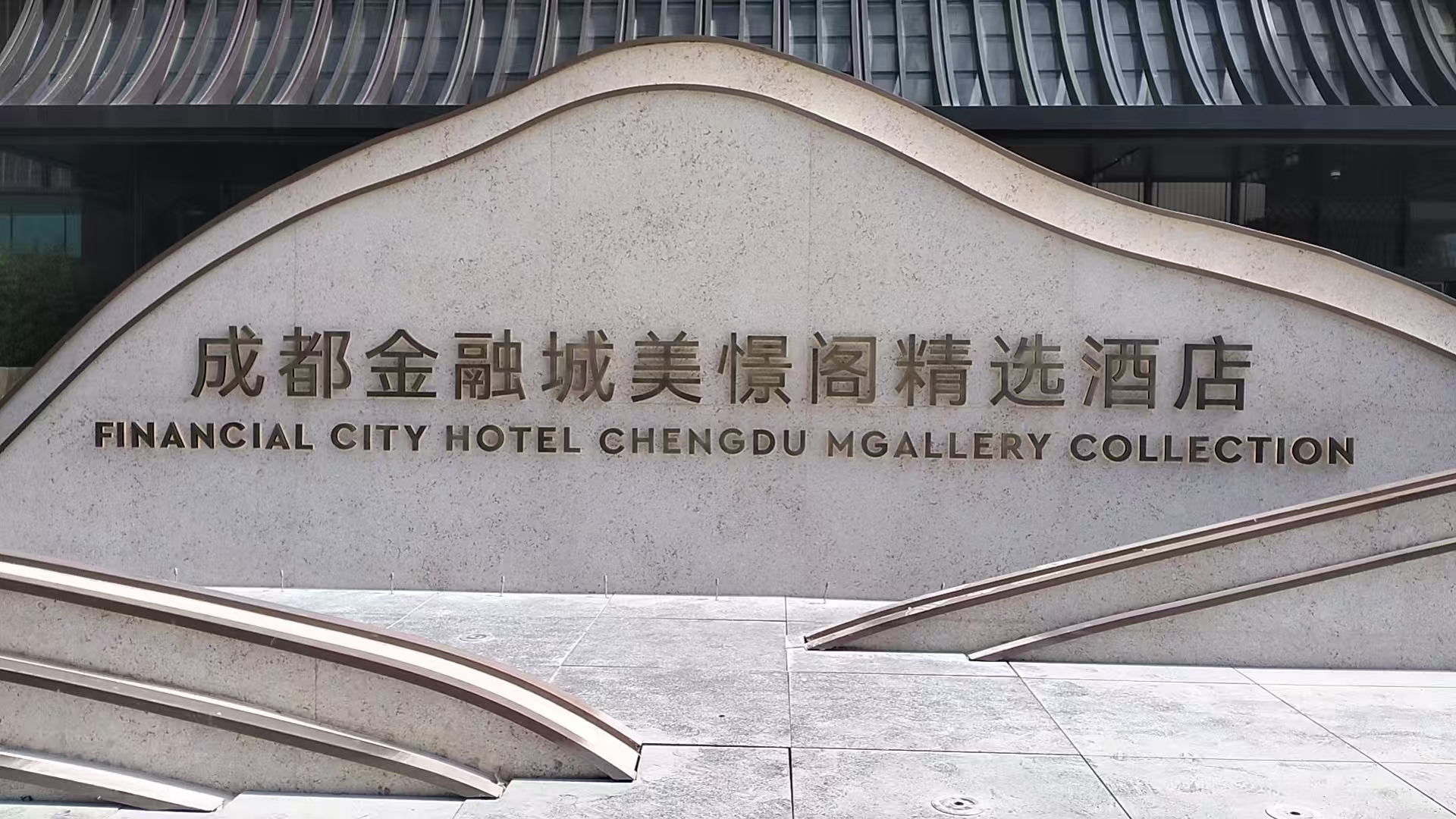

Hotel Entrance Monument Sign	W5290×H525mm, 12mm panel	1.2mm stainless steel folded box; 12mm frosted backlit acrylic	Fixed to stone monument wall; 12V power reserved, driver in accessible location

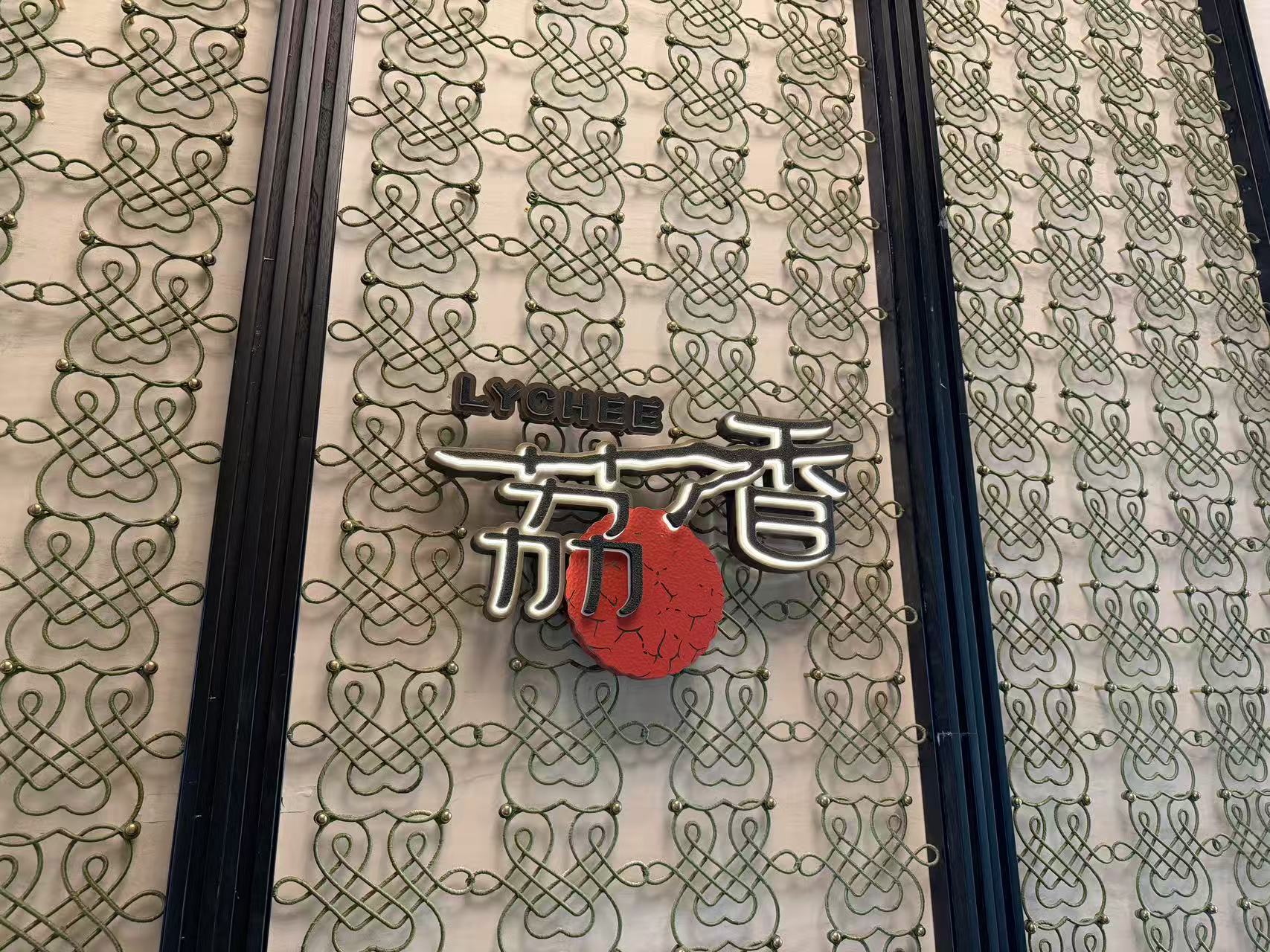

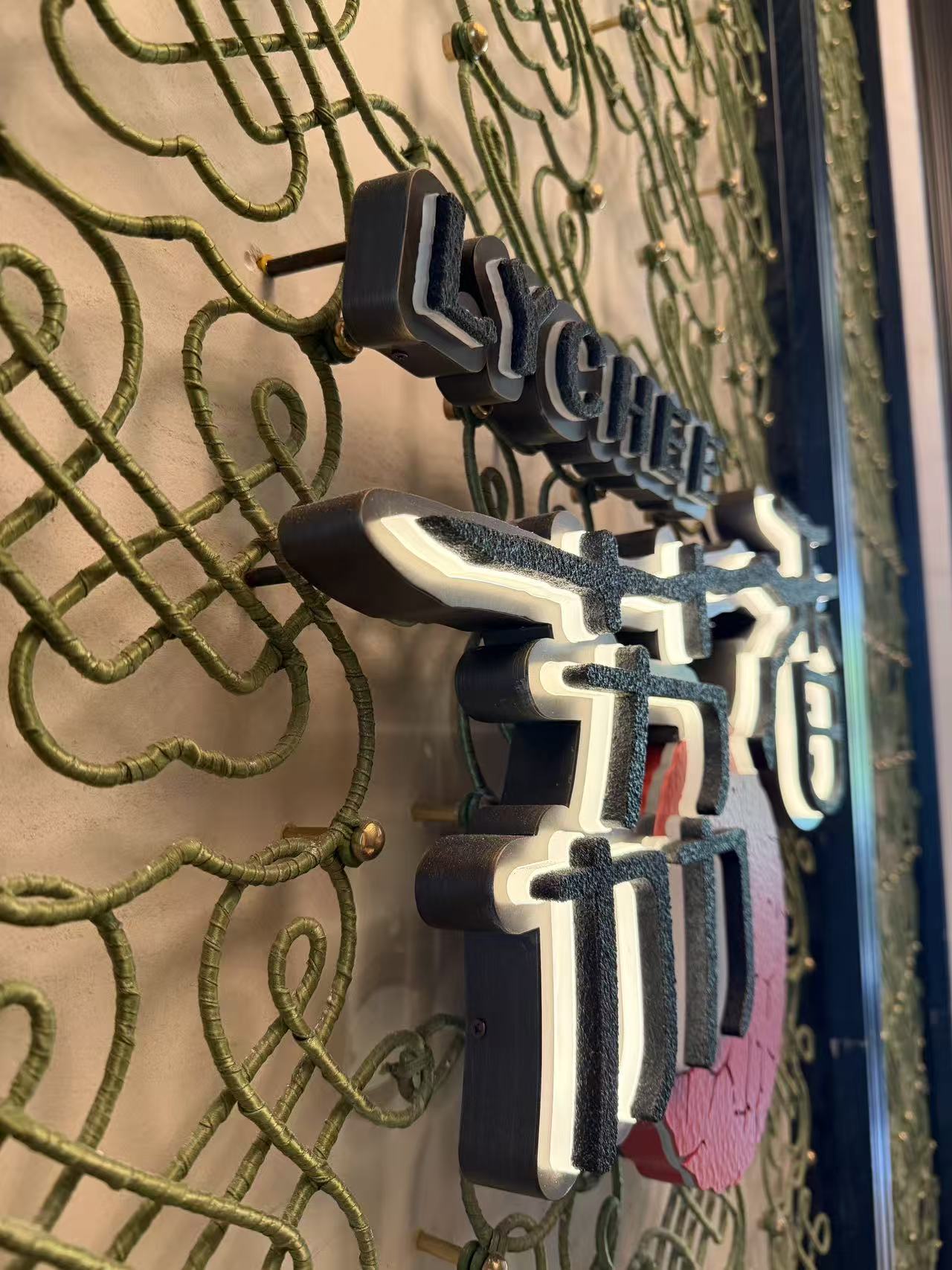

All Day Dining Sign (LYCHEE)	610×390mm; lychee element 215mm	8mm/3mm/1.2mm cut & folded stainless steel; frosted backlit acrylic	Wall-mounted, base at 1800mm AFF; power reserved by fit-out contractor

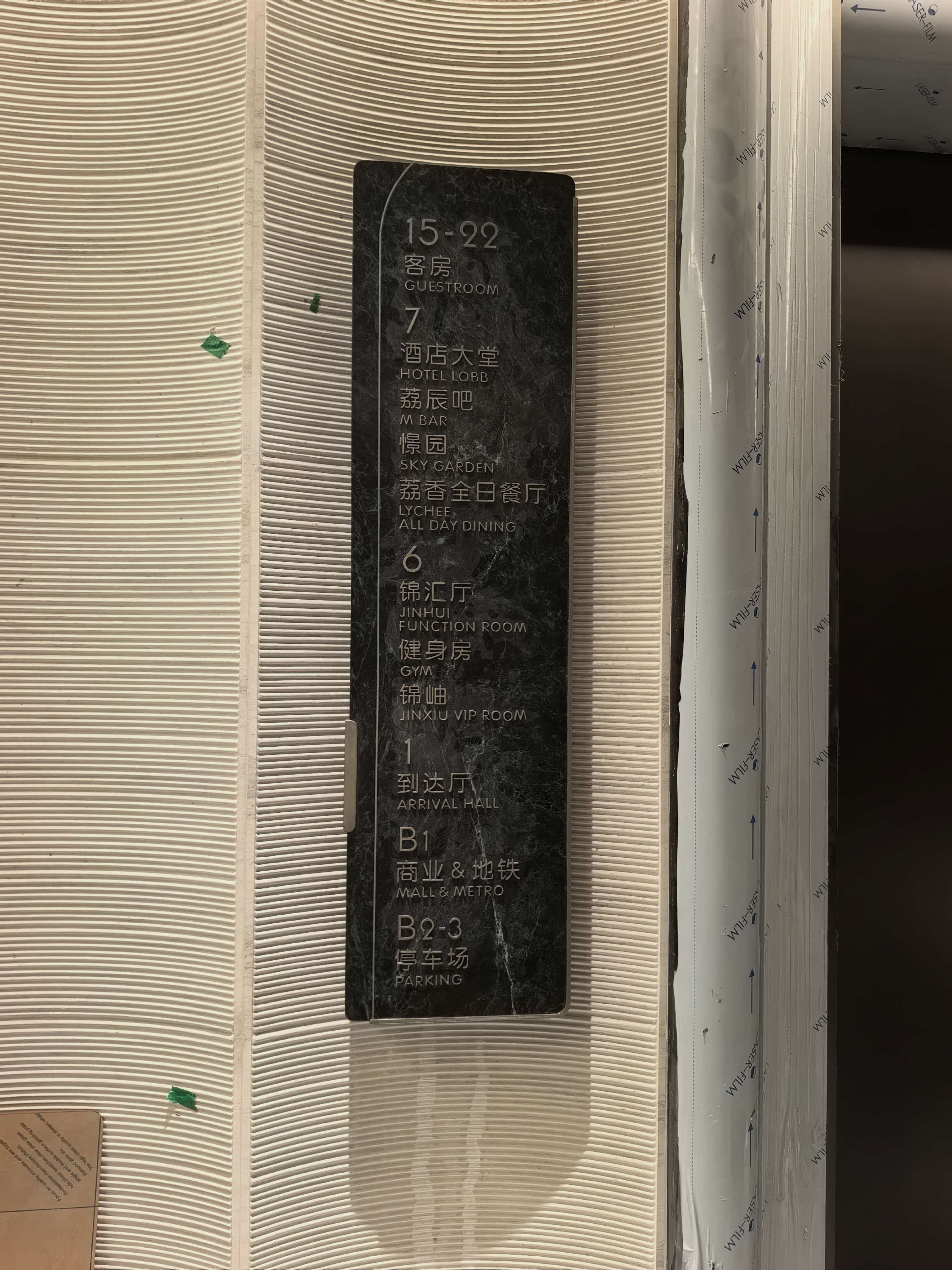

Lift Floor Information Sign – A	270×1000mm (975mm visible)	15mm Prada Green stone base; 5mm/3mm/2mm stainless steel pictograms, text & inlay strips	M8 threaded rod welded to structural keel, floating 50mm off stone face, concealed U-bracket

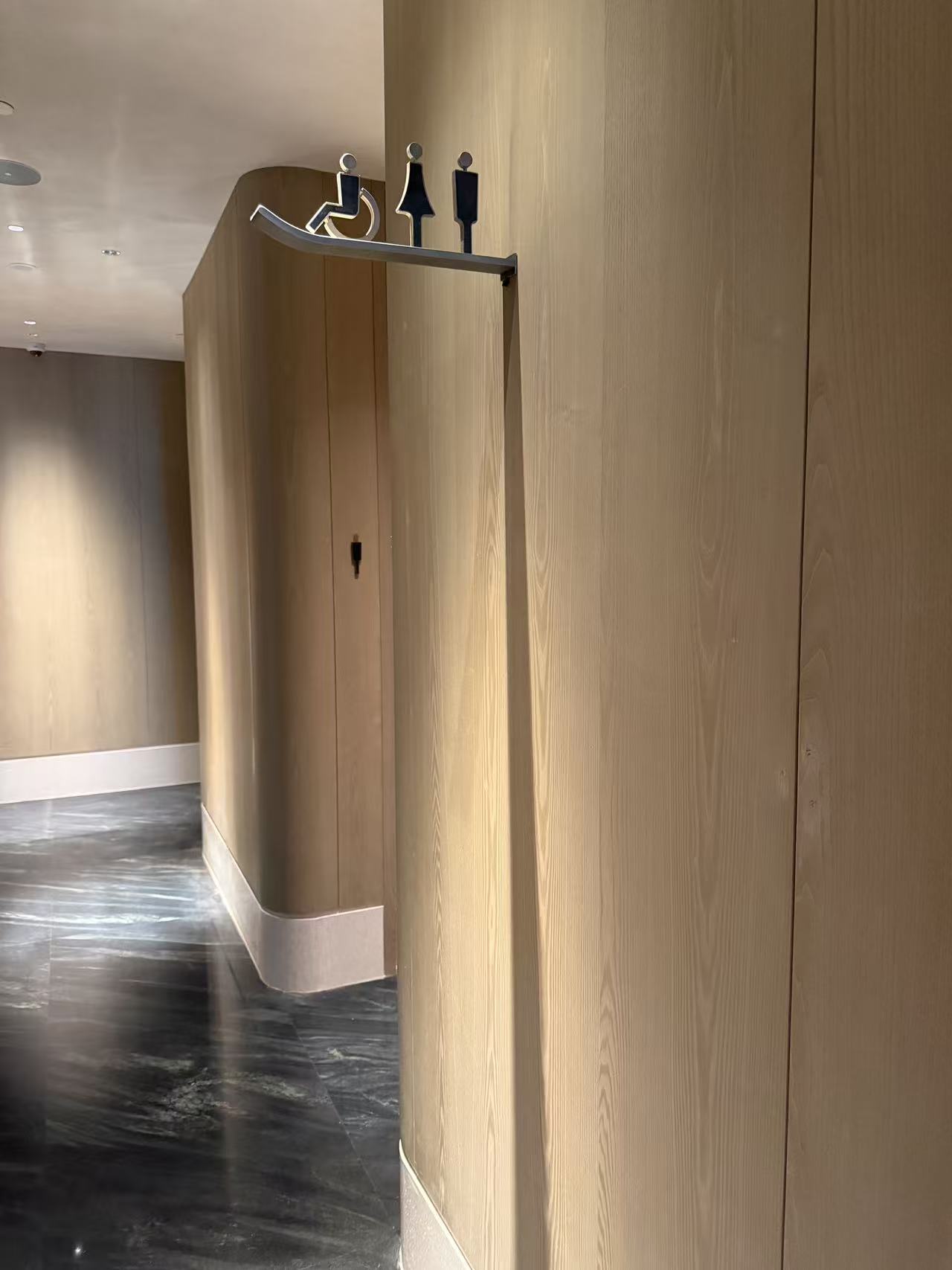

Restroom Direction Sign – B	380mm cantilever, 10mm panel; pictograms 150mm/120mm	10mm/7mm cut stainless steel pictograms; 2mm laser-cut steel support arm	Wall-fixed cantilever arm, base at 2300mm AFF, centered horizontally
